PP PE Film Washing Recycling Line for Waste Plastic Film

接触

PP PE Film Washing Recycling Line for Waste Plastic Film

最小注文数量 :	1セット	価格 :	USD 38,000 – 40,000 / Set (depending On Capacity & Configuration)
パッケージの詳細 :	輸出標準包装 / 木箱 / フィルム包装	受渡し時間 :	75-80日
支払条件 :	LC、D/P、T/T	供給の能力 :	65〜85日あたり1セット

起源の場所:	中国	ブランド名:	MOOGE
証明:	CE	モデル番号:	自分

詳細情報
機械試験報告書:	提供された	材料:	PP PE
アフターサービスの提供:	エンジニア	最終製品:	清潔なプラスチックフレイク
brand name:	MOOGE	保証:	1年
インバータ:	ABB	容量:	モデルによって異なりますが、通常は 500 ～ 2000 Kg/時間
ハイライト:	PP PE film recycling line , plastic film washing machine , waste plastic recycling equipment

製品の説明

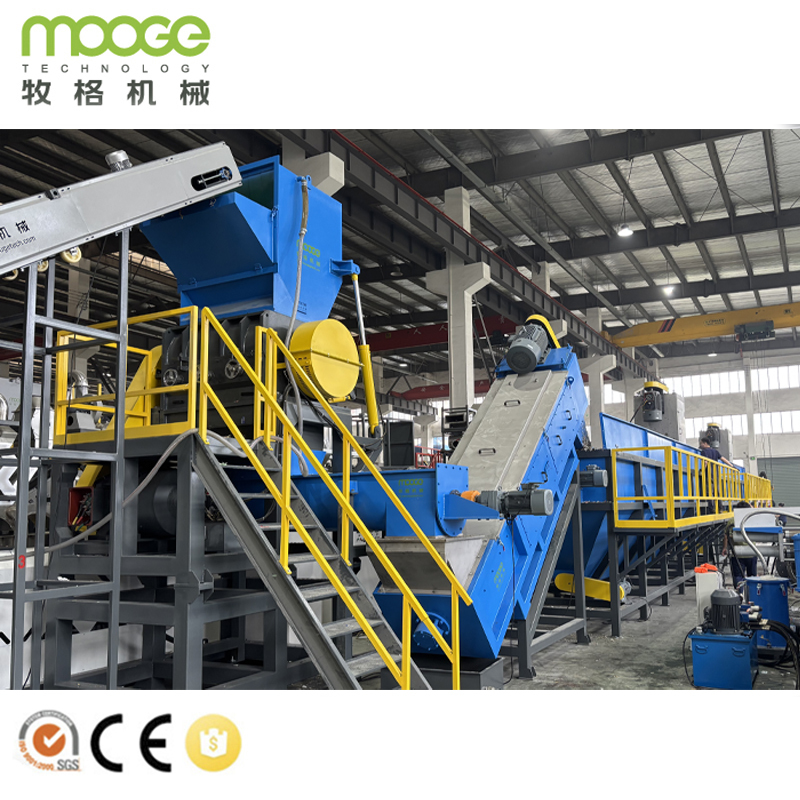

Product Overview

PP/PE Film Washing Line

PP/PE Film Washing Line is mainly used for recycling waste PP and PE soft plastic materials, such as plastic film, agricultural film, packaging film, shopping bags, woven bags, jumbo bags, stretch film, shrink film and other soft plastic waste.

The whole line can complete crushing, washing, friction washing, floating washing, rinsing, dewatering and drying processes. After processing, the final product is clean PP/PE film flakes or film scraps, which can be used for pelletizing, extrusion or further plastic recycling production.

This washing line is specially designed for soft plastic materials with light weight, large volume and high moisture content. According to different raw material conditions, the line can be equipped with plastic crusher, friction washer, floating washing tank, squeezing dryer, centrifugal dewatering machine, hot air drying system and storage silo.

The machine has stable performance, reasonable structure and easy operation. Capacity, voltage, machine layout and drying method can be customized according to customer requirements.

Specification

Applications

This PP/PE Film Washing Line is suitable for recycling and washing PP/PE soft plastic waste, such as agricultural film, greenhouse film, mulch film, packaging film, shopping bags, garbage bags, woven bags, jumbo bags, stretch film, shrink film and factory film scraps.

After washing and drying, the clean film materials can be used for plastic pelletizing, film blowing, plastic bag production, pipe extrusion, sheet extrusion, injection molding and other recycled plastic production.

Technical Specifications

Model	Capacity	Installed Power	Hot Washing	Water Supply	Area Required(LWH)
ME-300	300 kg/hr	200 kw	Optional	6-8 m3/hr	4045 m
ME-500	500 kg/hr	350 kw	Optional	8-10 m3/hr	4045 m
ME-1000	1000 kg/hr	600 kw	Optional	15-20 m3/hr	5566 m

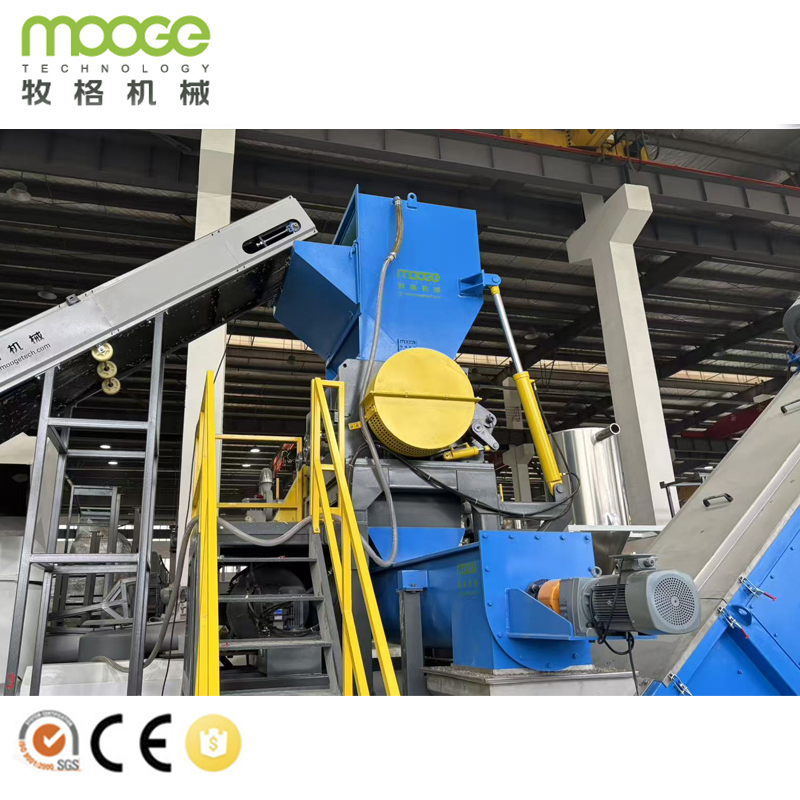

Crushing Machine

The machine structure and process flow can be adjusted according to different materials.

PP PE Film Washing Recycling Line for Waste Plastic Film 0

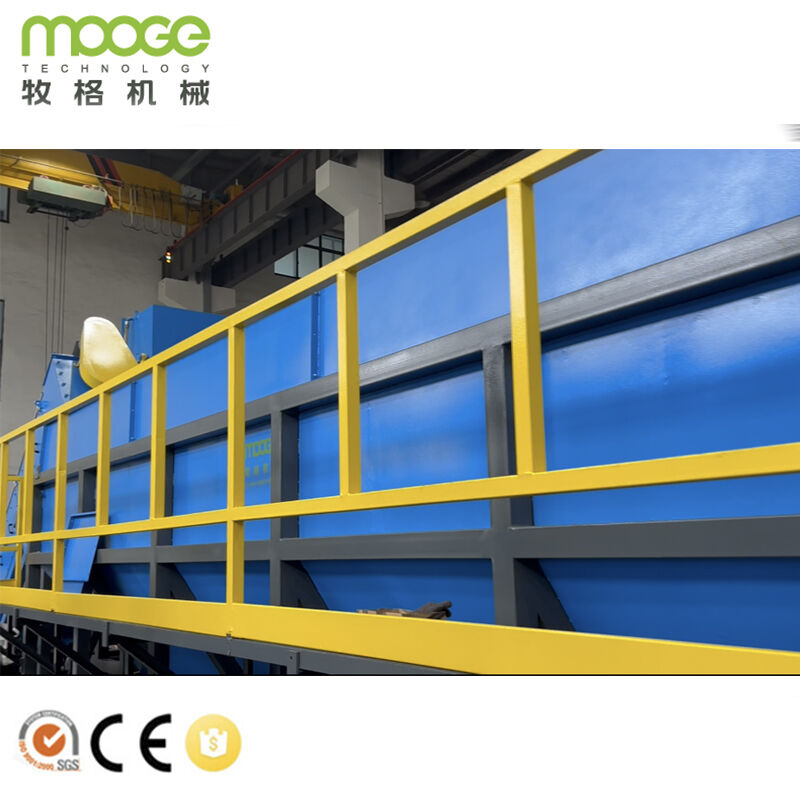

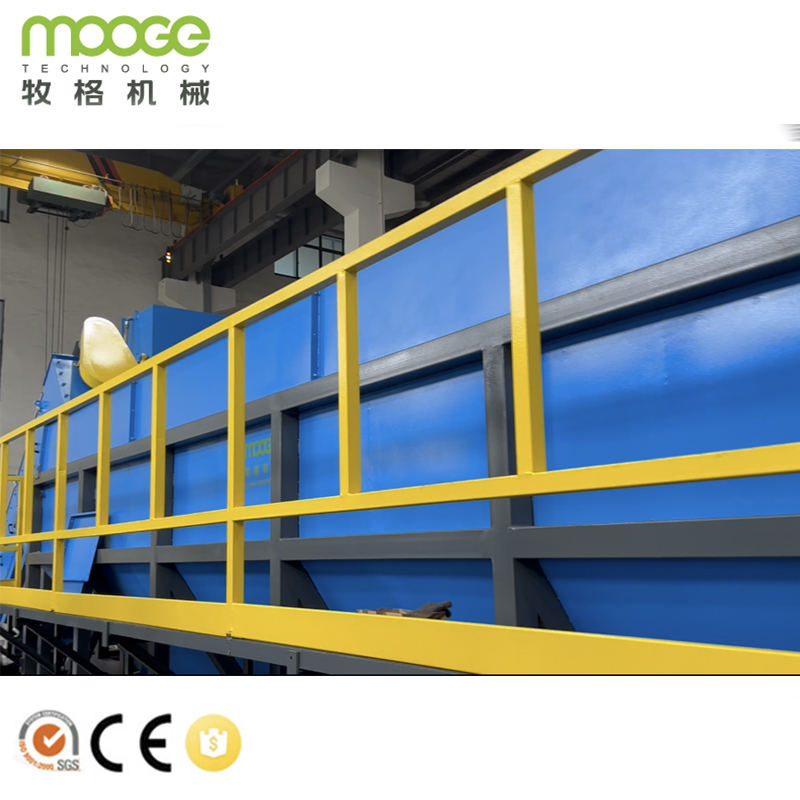

Floating Washing Tank

Used to washing recycling the material, with top rollers automatic take out the film or bags flakes, dirty waste sinking down and drain out at bottom.

PP PE Film Washing Recycling Line for Waste Plastic Film 1

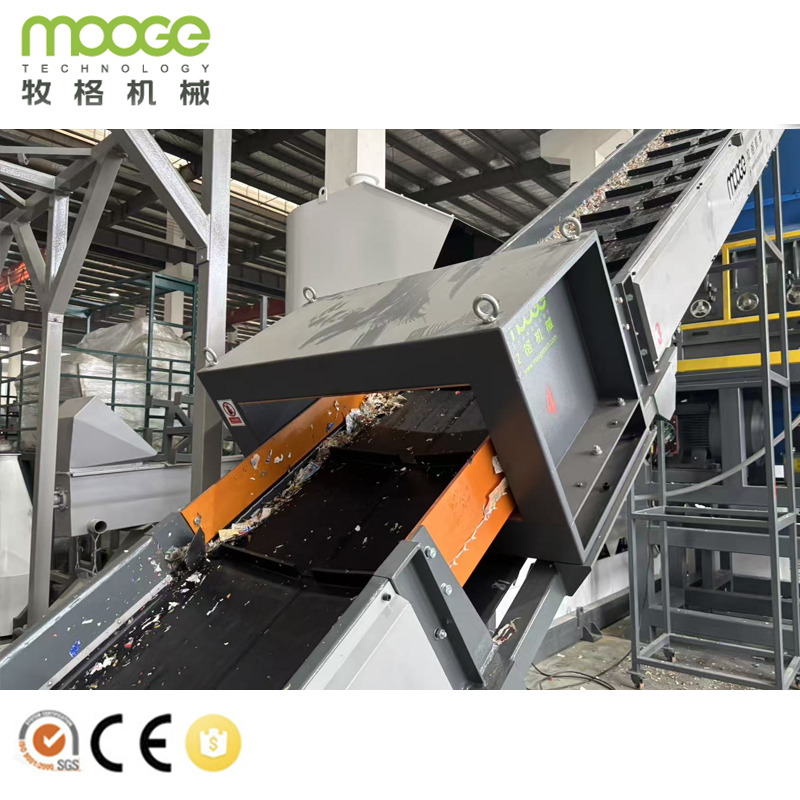

Semi-Automatic Metal Detector

Check the metal before material into crusher machine, protect the crusher machine blade and screen

PP PE Film Washing Recycling Line for Waste Plastic Film 2

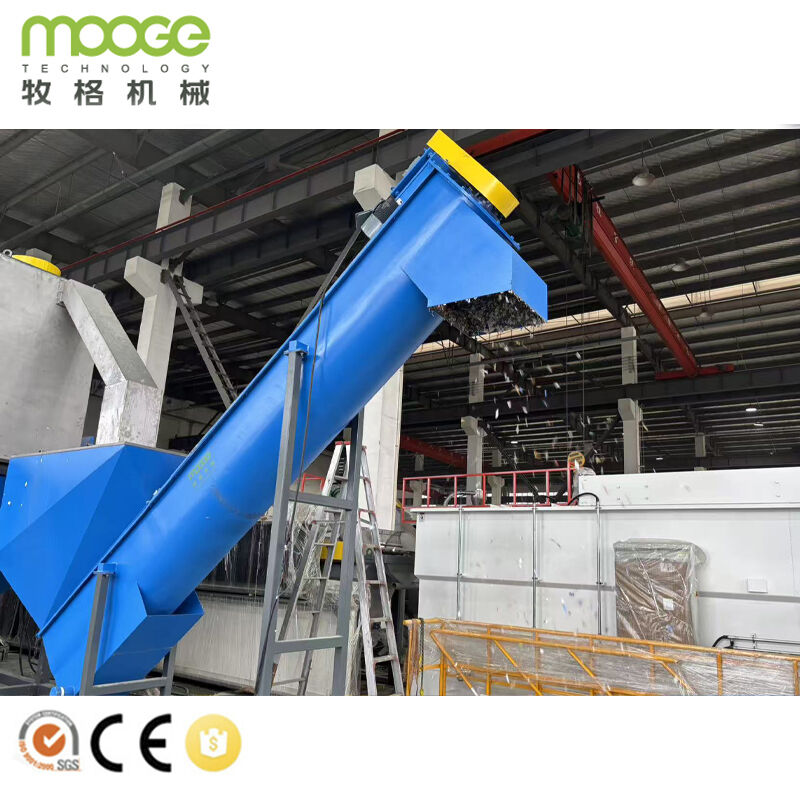

Friction washing loader machine

Friction washing the material and loading up it PP PE Film Washing Recycling Line for Waste Plastic Film 3

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

What material do you want to recycle?
What is the material size?
Is the material clean or dirty?
What capacity do you need per hour?
What is your final product requirement?
Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

Complete plastic recycling solution
Customized machine configuration
Practical process design
Stable machine performance
Suitable for different plastic materials
Factory layout support
Installation and operation guidance
Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
