Plastic Film Washing and Pelletizing Line for PP PE Waste Film

接触

Plastic Film Washing and Pelletizing Line for PP PE Waste Film

最小注文数量 :	1セット	価格 :	USD 66,000 – 86,000 / Set (depending On Capacity & Configuration)
パッケージの詳細 :	輸出標準包装 / 木箱 / フィルム包装	受渡し時間 :	75-80日
支払条件 :	LC、D/P、T/T	供給の能力 :	65〜85日あたり1セット

起源の場所:	中国	ブランド名:	MOOGE
証明:	CE	モデル番号:	RSL

詳細情報
機械試験報告書:	提供された	材料:	PP PE
アフターサービスの提供:	エンジニア	最終製品:	クリーンなプラスチックペレット
brand name:	MOOGE	保証:	1年
インバータ:	ABB	容量:	モデルによって異なります。通常は 300 ～ 1000 Kg/時間
ハイライト:	PP PE plastic film washing line , waste film pelletizing machine , plastic recycling pelletizing line

製品の説明

Product Overview

PP PE Plastic Film Recycling Pelletizing Line

This Pelletizing Line is mainly used for recycling waste PP and PE soft plastic materials, such as plastic film, packaging film, shopping bags, woven bags, agricultural film, shrink film and other soft plastic waste.

The production line can complete feeding, melting, plasticizing, extrusion, filtration, strand cooling, pellet cutting and pellet collection. The final product is recycled PP/PE plastic pellets, which can be used for film blowing, injection molding, extrusion, pipe production or other recycled plastic applications.

This line adopts a stable feeding system and efficient extrusion system, which is suitable for light and soft plastic materials. According to different raw material conditions and production requirements, the machine can be equipped with force feeder, compactor, hydraulic screen changer, water cooling tank, air dryer and pellet cutter.

The machine has stable performance, easy operation and convenient maintenance. Capacity, voltage, screw design, machine layout and pelletizing method can be customized according to customer requirements.

Specification

Applications

This PP/PE Film Strand Pelletizing Line is suitable for recycling PP/PE soft plastic waste, such as plastic film, packaging film, shopping bags, agricultural film, woven bags, jumbo bags, stretch film, shrink film and factory plastic scraps.

The final recycled pellets can be used for film blowing, plastic bag production, pipe extrusion, sheet extrusion, injection molding, profile extrusion and other recycled plastic production.

It is widely used in plastic recycling plants, film recycling factories, packaging factories, woven bag recycling plants and plastic pelletizing production lines.

Technical Specifications

Model	Screw Diameter	Main Motor Power	Screw L/D	Second Screw L/D	Capacity
RSL-SJ85	85	55KW	28-33:1	10-12:1	150-200kg/hr
RSL-SJ100	100	75KW	28-33:1	10-12:1	200-300kg/hr
RSL-SJ130	130	90KW	28-33:1	10-12:1	300-400kg/hr
RSL-SJ150	150	110KW	28-33:1	10-12:1	400-500kg/hr
RSL-SJ180	180	132KW	28-33:1	10-12:1	600-800kg/hr
RSL-SJ200	200	160KW	28-33:1	10-12:1	800-1000kg/hr

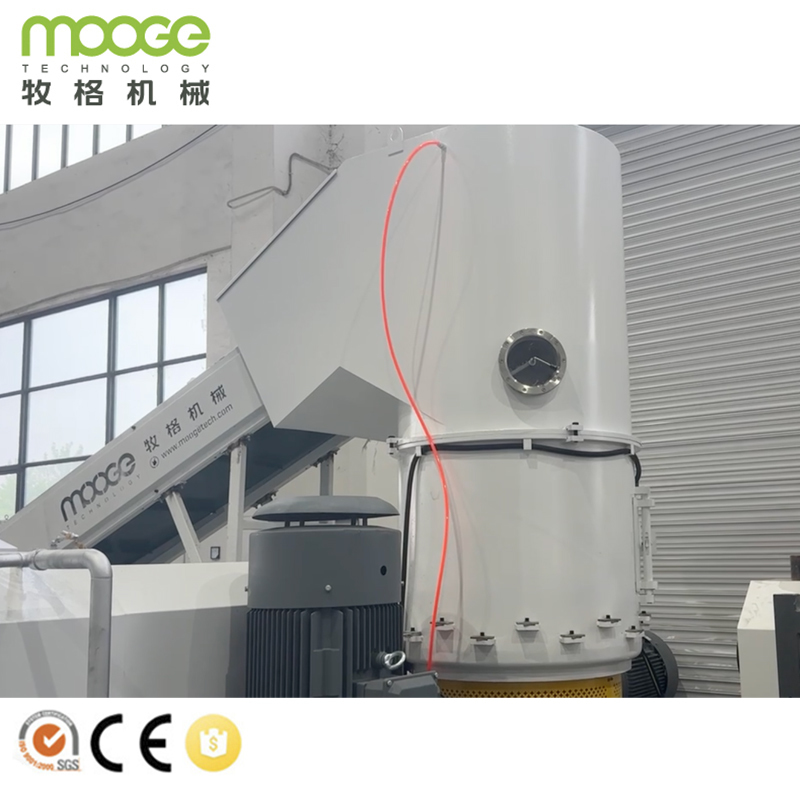

Compacting Force Feeder

>With glass window to check inside working.
>Barrel base with the water cooling system
>Temperature controlled by magnetic valve
>The barrel touched material all made by stainless steel.

Plastic Film Washing and Pelletizing Line for PP PE Waste Film 0

Single Screw Extruder

>Extruder made by sturdy frame, heavy. No vibrating when the machine is running
>The whole frame where installed the gearbox, motor and screw has done the milling working.
>The frame is build up by the square tube and thick steel on top.

Plastic Film Washing and Pelletizing Line for PP PE Waste Film 1

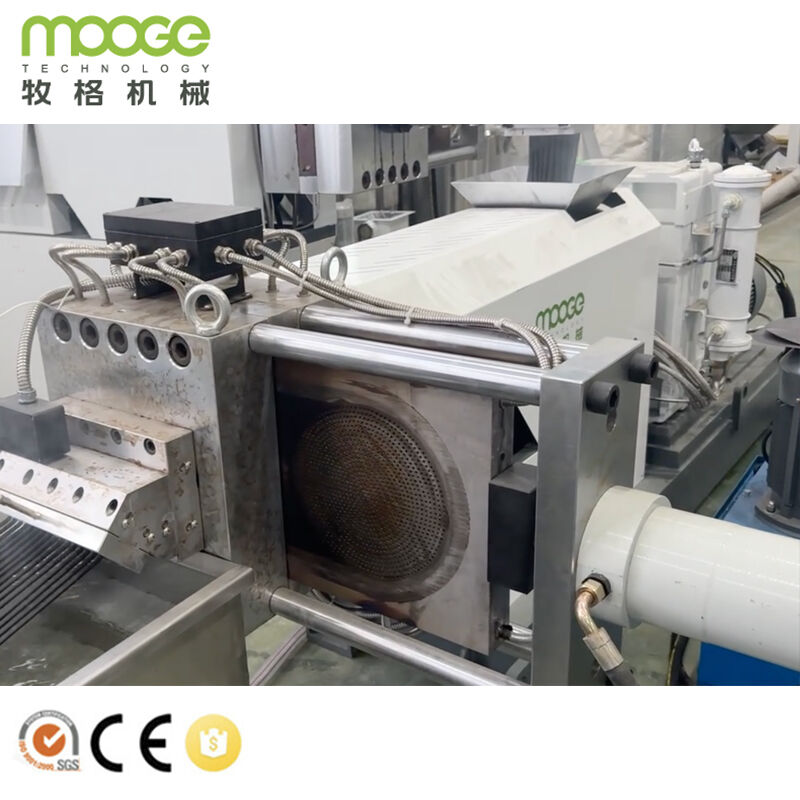

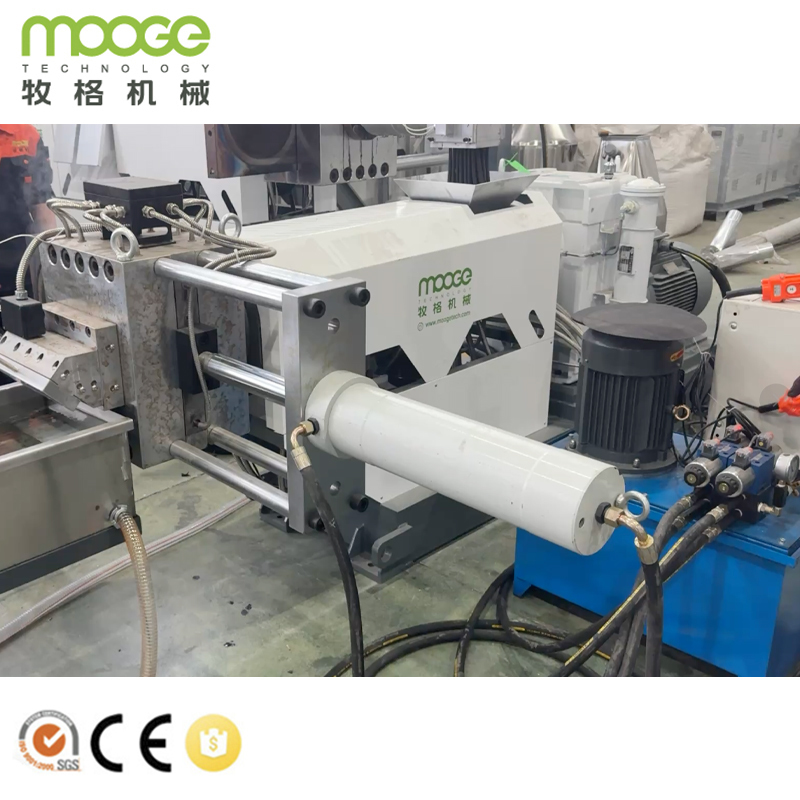

Hydraulic Screen Changer

>Double position board model
>Board made by 38CrMnAl with forging and heating treatment that won't deform after heating up.>With hydraulic station and air accumulator tank one set
>With the magnetic drive valve to control the working

Plastic Film Washing and Pelletizing Line for PP PE Waste Film 2

Company Profile

Plastic Film Washing and Pelletizing Line for PP PE Waste Film 3

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

What material do you want to recycle?
What is the material size?
Is the material clean or dirty?
What capacity do you need per hour?
What is your final product requirement?
Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

Complete plastic recycling solution
Customized machine configuration
Practical process design
Stable machine performance
Suitable for different plastic materials
Factory layout support
Installation and operation guidance
Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
