Recycled Waste PP PE Rigid Plastic Scraps Flakes Extrusion Pelletizing Line Hard Plastic Greanules
Recycled Waste PP PE Rigid Plastic Scraps Flakes Extrusion Pelletizing Line Hard Plastic Greanules Recycled Waste PP PE Rigid Plastic Scraps Flakes Extrusion Pelletizing Line Hard Plastic Greanules Recycled Waste PP PE Rigid Plastic Scraps Flakes Extrusion Pelletizing Line Hard Plastic Greanules Recycled Waste PP PE Rigid Plastic Scraps Flakes Extrusion Pelletizing Line Hard Plastic Greanules Recycled Waste PP PE Rigid Plastic Scraps Flakes Extrusion Pelletizing Line Hard Plastic Greanules
接触

リサイクル廃PP PE硬質プラスチックスクラップフレーク押出ペレット化ライン 硬質プラスチックペレット

最小注文数量 : 1セット 価格 : USD 48,000 – 50,000 / Set (depending On Capacity & Configuration)
パッケージの詳細 : 輸出標準包装 / 木箱 / フィルム包装 受渡し時間 : 75-80日
支払条件 : LC、D/P、T/T 供給の能力 : 65〜85日あたり1セット
起源の場所: 中国 ブランド名: MOOGE
証明: CE モデル番号: YSS

詳細情報
機械試験報告書: 提供された 材料: HDPE、PE/PP、LLDPE、ABS/PP、PP、ABS
アフターサービスの提供: エンジニア 最終製品: クリーンなプラスチックペレット
brand name: MOOGE 保証: 1年
インバータ: ABB 容量: モデルによって異なります。通常は 100 ～ 1000 Kg/時間
ハイライト:

リサイクルPP PEプラスチックペレット化ライン

,

硬質プラスチックペレット押出機

,

硬質プラスチックスクラップペレット化装置

製品の説明

Product Overview

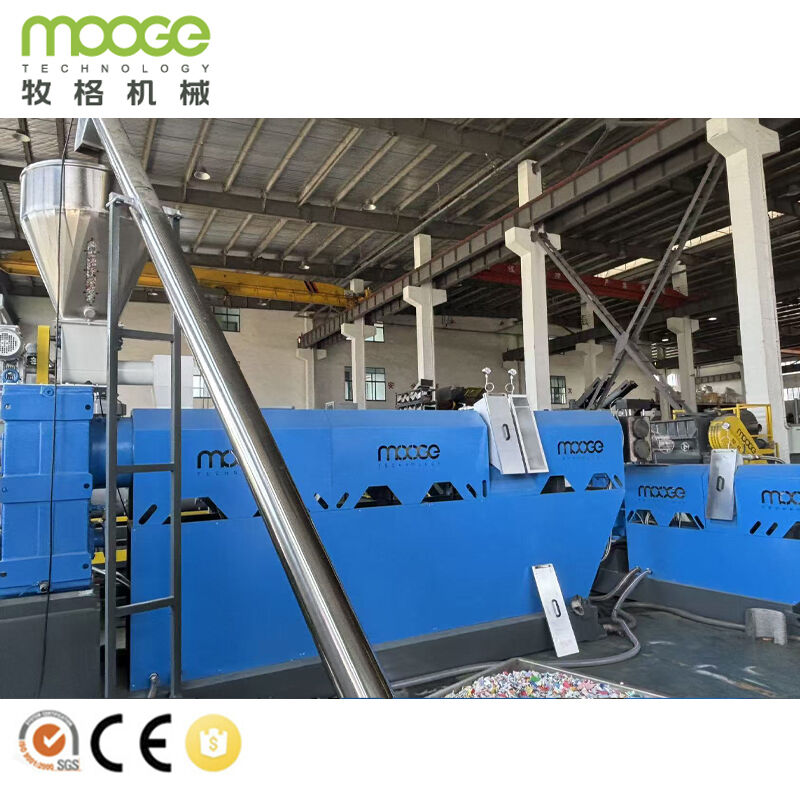

Rigid Plastic Double Stage Pelletizing Line

The Rigid Plastic Double Stage Strand Pelletizing Line is specially designed for recycling rigid plastic flakes and regrinds into high-quality pellets. Equipped with a two-stage extrusion system, vacuum degassing, hydraulic screen changer, and strand pelletizing unit, it effectively removes moisture, volatile gases, and impurities, producing uniform pellets suitable for repeated processing.

Specification

Applications
The Rigid Plastic Double Stage Strand Pelletizing Line is specially designed for recycling various rigid plastic materials, including HDPE, PP, ABS, PS, PC, and other engineering plastics. It is suitable for processing washed plastic flakes, crushed regrinds, injection molding runners, blow molding scraps, plastic bottles, drums, crates, pallets, buckets, and industrial production waste. The finished recycled pellets can be widely used in injection molding, blow molding, pipe extrusion, sheet extrusion, and the production of various plastic products, providing an efficient and economical recycling solution for plastic manufacturers and recycling plants.


Technical Specifications

Model
Screw Diameter
Screw L/D
Main Motor Power
Capacity
YSL-SJ85
85mm
28-33:1
55KW
150-200kg/hr
YSL-SJ100
100mm
28-33:1
75KW
200-300kg/hr
YSL-SJ130
130mm
28-33:1
90KW
300-400kg/hr
YSL-SJ150
150mm
28-33:1
110KW
400-500kg/hr
YSL-SJ160
160mm
28-33:1
132KW
500-600kg/hr
YSL-SJ180
180mm
28-33:1
160KW
600-800kg/hr
YSL-SJ200
200mm
28-33:1
200KW
800-1000kg/hr

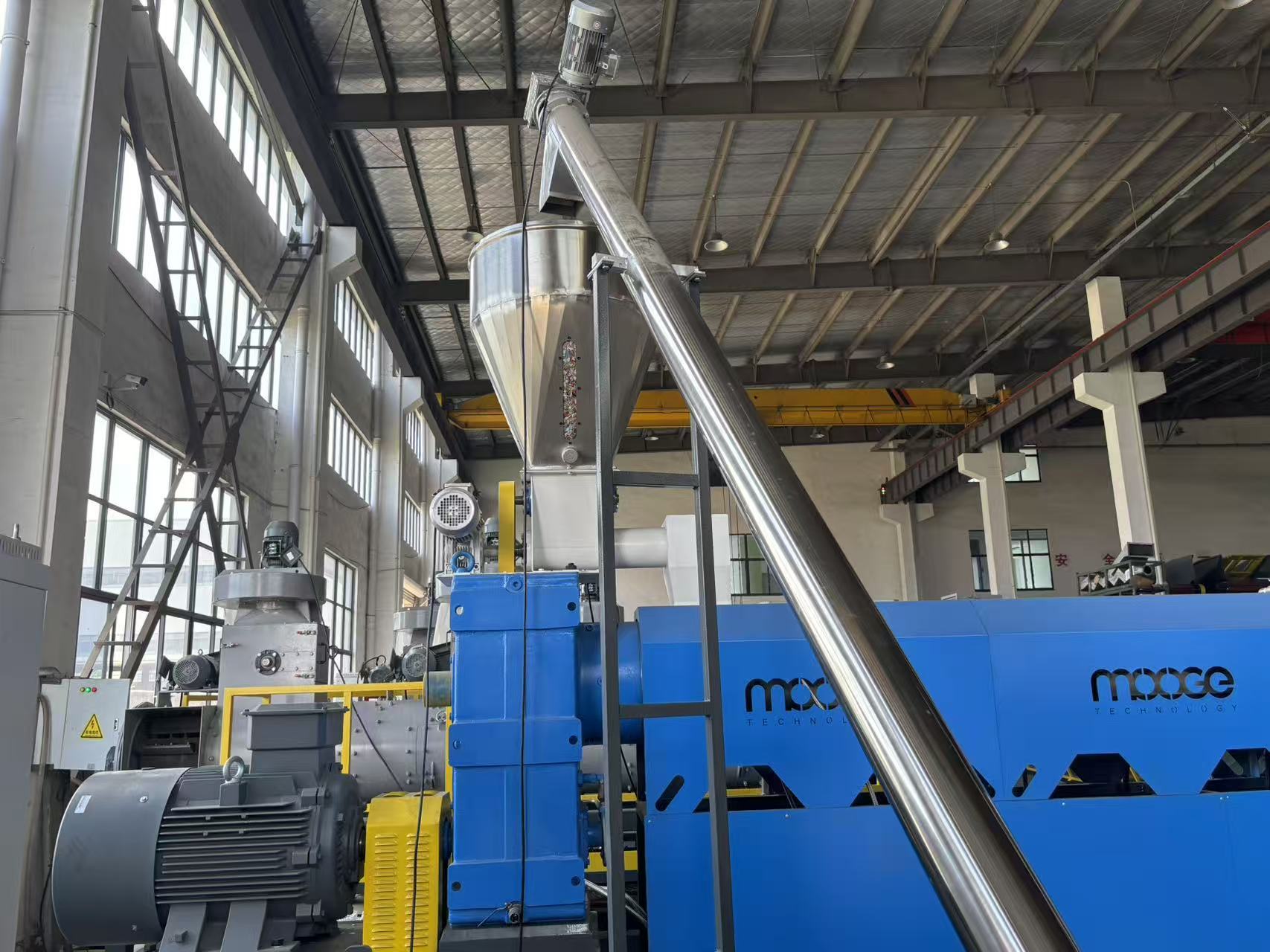

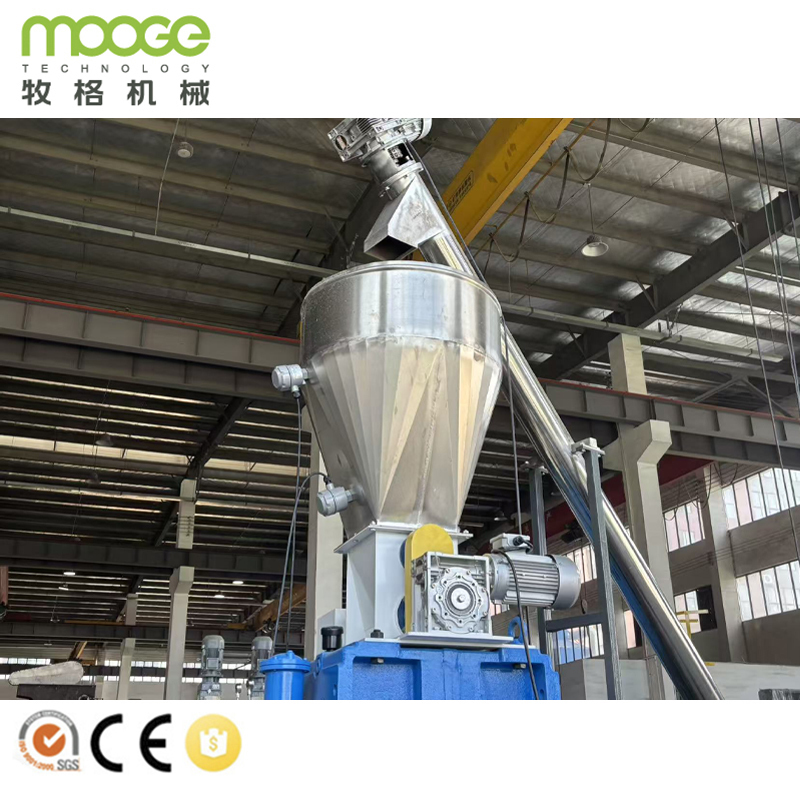

Screw loader and Dosing Feeder

Use to loading flakes into dosing feedingDosing feeding the material into exturder
Keep the exturder more stable working

リサイクル廃PP PE硬質プラスチックスクラップフレーク押出ペレット化ライン 硬質プラスチックペレット

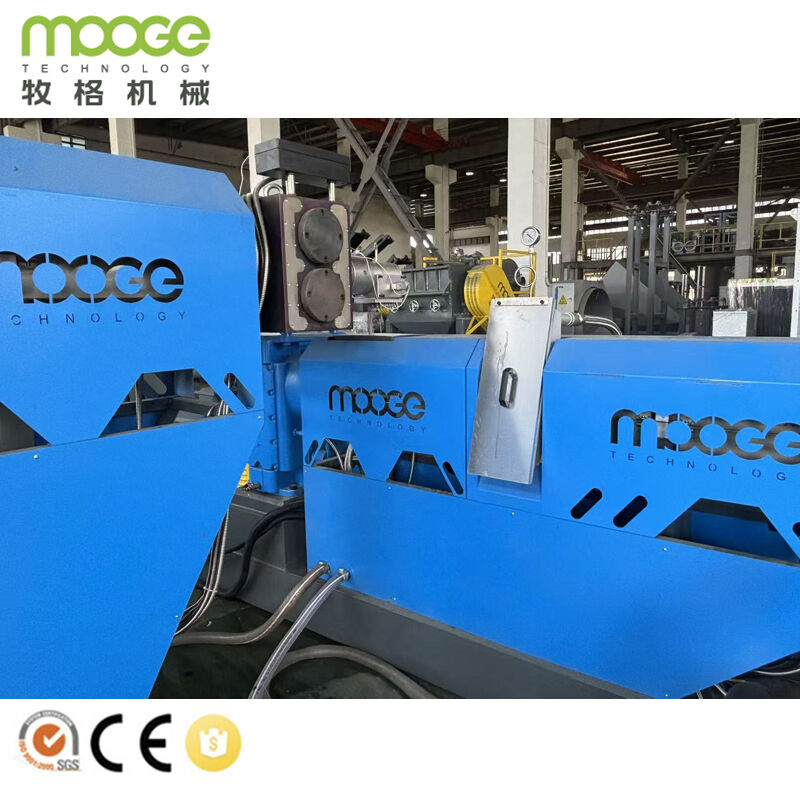

Single Screw Extruder

The single screw extruder is built with a strong and heavy-duty frame to ensure stable operation without vibration during machine running. The complete frame, where the gearbox, motor and screw system are installed, is precisely milled to improve installation accuracy and machine stability. The frame is made of square steel tubes with thick steel plates on the top, providing high strength, durability and long service life.



リサイクル廃PP PE硬質プラスチックスクラップフレーク押出ペレット化ライン 硬質プラスチックペレット

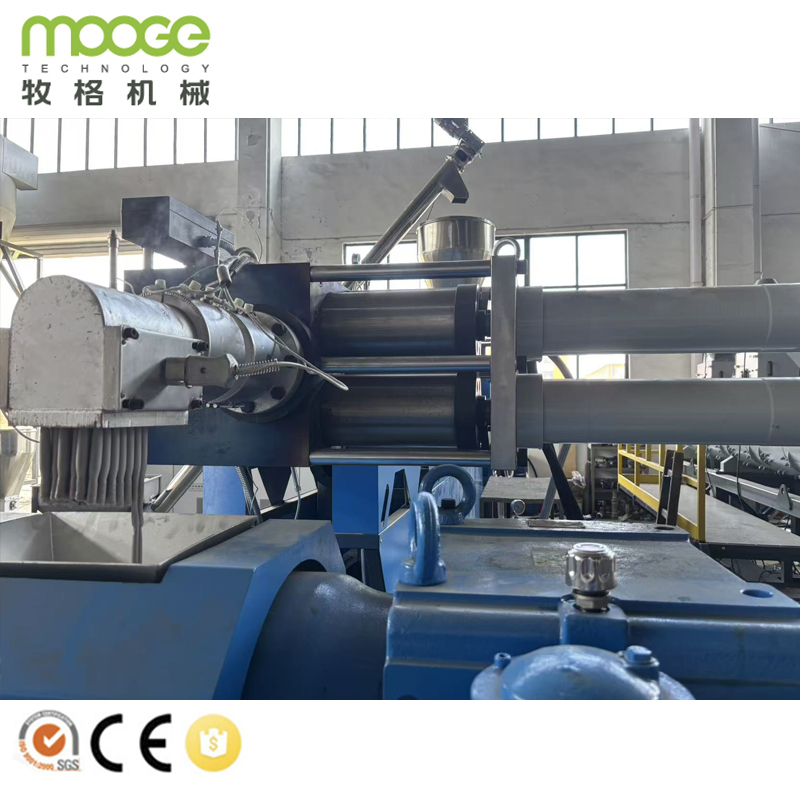

Hydraulic Screen Changer

Double position single board model
Driven by a hydraulic system, the screen changing process is fast, reliable, and easy to operate. It is especially suitable for recycling materials containing paper, aluminum, wood, dust, or other contaminants, significantly improving filtration efficiency and pellet quality while reducing downtime and labor costs.
Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine





Cutting Machine



Cutting the material into pellets

Plastic Granulating Machine PP PE Plastic Granulator Waste PP PE Plastic Pelletizing Machine


Company Profile

リサイクル廃PP PE硬質プラスチックスクラップフレーク押出ペレット化ライン 硬質プラスチックペレットリサイクル廃PP PE硬質プラスチックスクラップフレーク押出ペレット化ライン 硬質プラスチックペレット

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

  1. What material do you want to recycle?
  2. What is the material size?
  3. Is the material clean or dirty?
  4. What capacity do you need per hour?
  5. What is your final product requirement?
  6. Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

  • Complete plastic recycling solution
  • Customized machine configuration
  • Practical process design
  • Stable machine performance
  • Suitable for different plastic materials
  • Factory layout support
  • Installation and operation guidance
  • Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
